Site 26A

Site 26A

Project Details
Original Construction Year 2004
Most Recent Rebuild Year
Total Cost 0.00
Total Capital Cost $78,000.00
Latitude / Longitude Method Unknown
Latitude 40.488821
Longitude -78.508575
Elevation 654 m
Project Site 26A
Project Type Passive Treatment System
Project Status
AMD Source Underground
Stream UNT to Sugar Run
Watershed
River Basin Susquehanna
Quad Cresson
City/Township Allegheny
County Blair
State PA

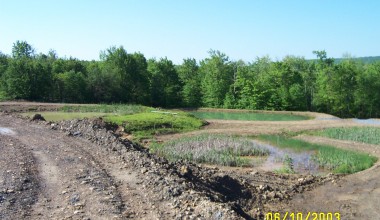

Description: Site 26A is located on Pennsylvania Game Commission property (SGL 198). Originally constructed in 2004 it contains a vertical flow pond, one separate flush pond, two sedimentation basins, and finishing/ manganese removal bed. The seep is run through the system and then discharged into an UNT to Sugar Run. Locals refer to the UNT as Gum Tree Run. 2007 - a water control structure was placed on the flush pond as well as the Mn removal bed. 2012 - due to excessive clogging of the original water control structure the system was revamped. the mushroom compost in the vertical flow pond was replaced and amended with limestone dust. approximately 200 tons of limestone near the outlet was cleaned and a new outlet was installed. the outlet is just a piece of PVC pipe set at the desired elevation.

Water Quality Data Summary

Treatment Technologies
Treatment Technology Quantity Status
Flush Pond 2 N/A
Manganese Removal Bed 1 N/A
Settling Pond 2 N/A
Vertical Flow Pond (VFP) 1 N/A
Location Links
Map
GPS Directions
Project Contacts
Contact Person:
Contact Organization: PA DEP, BAMR Ebensburg
Project Designer: Eric Robertson
Project Designer Organization:
Project Responsible Organization: PA DEP, BAMR Ebensburg
Funding
no data available
External System IDs
Title System
PA-186 OSM
Project Performance
