MON 71 AMD Passive Treatment

Project Details
Original Construction Year 2016
Most Recent Rebuild Year
Total Cost $0.00
Total Capital Cost 69836.00
Latitude 41.016024
Longitude -78.472307
Elevation
Project MON 71 AMD Passive Treatment
Project Type Passive Treatment System
AMD Source Underground
Stream Unnamed Tributary to Montgomery Creek
Watershed
River Basin Susquehanna
Quad
City
County Clearfield
State

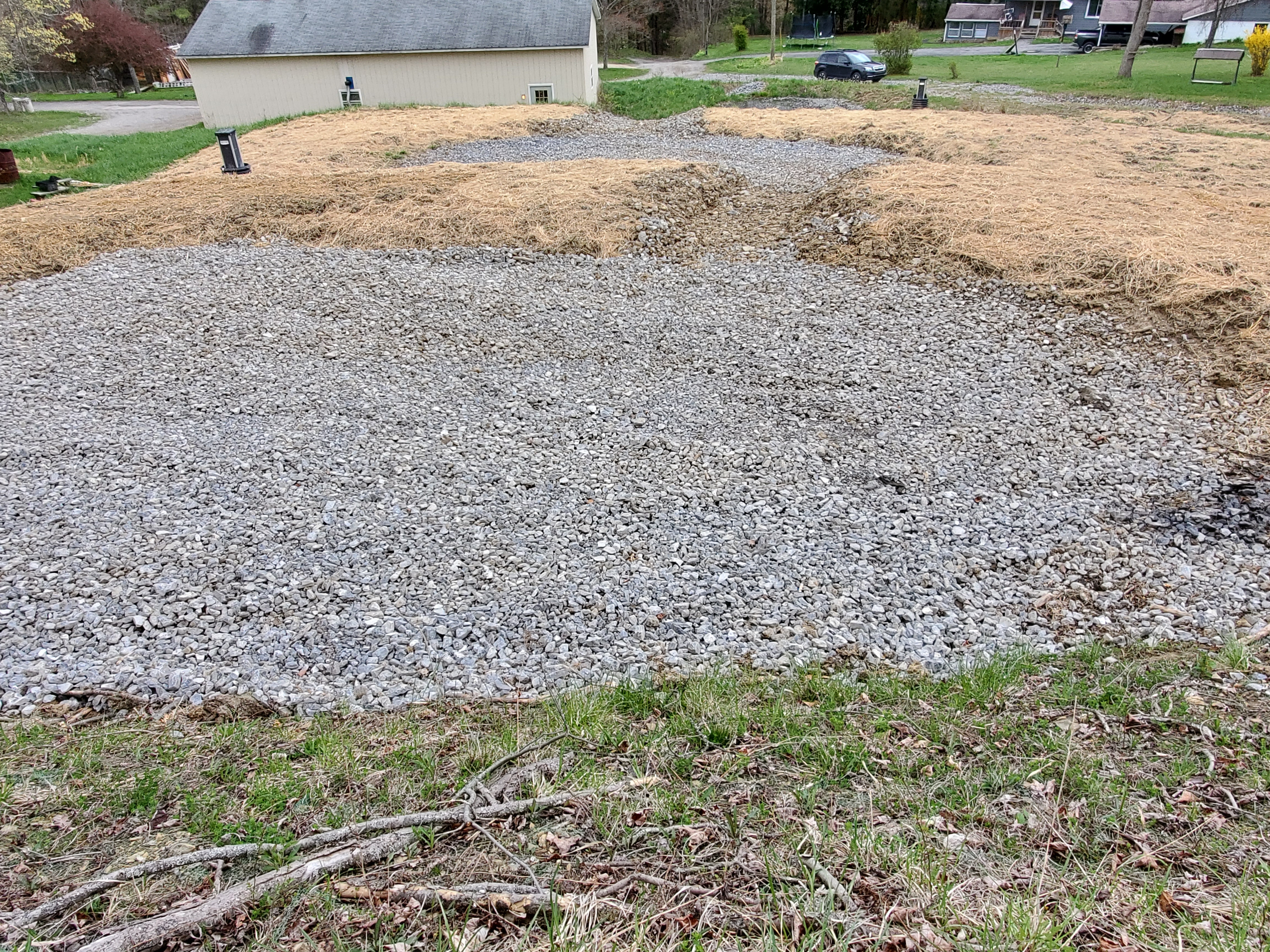

Description: The purpose of this project was to design and construct a passive treatment system at the Mon 71 Discharge in the Montgomery Creek watershed. Located approximately 2 miles west of Clearfield, this is the only significant source of pollution that is degrading an unnamed tributary, known as the Last Tributary, before its confluence with Montgomery Creek. The acid mine drainage (AMD) emerges from a discharge pipe out letting from the mine. The Mon 71 AMD Passive Treatment System has been designed so that the discharge from the pipe is directed into a series of three limestone cells. The limestone cells have been filled with high-calcium limestone to treat the discharge. Each limestone cell discharges to the next through a rock-lined spillway. The third limestone cell discharges to a stilling basin, which then discharges through an 18” culvert under the existing road and into a channel. The size of the channel has been slightly increased through construction, and the channel has also been lined with high-calcium limestone to provide further treatment of the AMD discharge. The Mon 71 Discharge has an average pH measured at 5.4. Acidity ranged from 3 to 23 mg/L. Iron was measured at 0.13 mg/L, and aluminum at 0.78 mg/L. Manganese was measured at 1.23 mg/L and sulfates were measured at 437 mg/L. The treatment system was design to treat 50 gpm.

Water Quality Data Summary

Treatment Technologies
Treatment Technology Quantity
Limestone Bed 3
Open Limestone Channel (OLC) 1
Location Links
Map
GPS Directions
Project Contacts
Contact Person: kwilliamsccd
Contact Organization: Clearfield County Conservation District
Project Designer:
Project Designer Organization:
Project Responsible Organization:
Funding
no data available
Organizations
no data available
External System IDs
no data available
Project Performance
