MON 30 AMD Treatment System

Project Details
Construction Year
2016
Total Cost
$0.00
Total Capital Cost
413439.00
Latitude
41.039743
Longitude
-78.499675
Elevation
Project
MON 30 AMD Treatment System
GPS
0
AMD Source
Surface
Project Type
Passive Treatment System
River Basin
Susquehanna
Watershed
Quad
Elliot Park SE
City
Clearfield
County
Clearfield
State
PA
Stream
Montgomery Creek

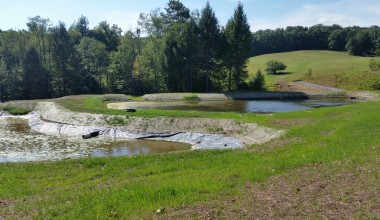

Description: Located approximately 4 miles west of Clearfield, the MON 30 discharge is a significant source of pollution that is degrading an unnamed tributary before its confluence with Montgomery Creek, west of the borough of Clearfield in Clearfield County. The acid mine drainage (AMD) emerges from a reclaimed surface mine site with numerous AMD seeps. The Mon 30 AMD Passive Treatment System has been designed so that much of the AMD runoff is diverted into an equalization basin first. The equalization basin discharges into a vertical flow wetland (VFW) cell at elevation with a high-flow bypass spillway. The VFW cell has been lined with a 40 mil HDPE geomembrane liner (liner). The VFW discharges through an inline water level control into the settling basin. A liner has also been installed in the settling basin. The settling basin discharges into a constructed wetland through an overflow pipe. The constructed wetland discharges to the unnamed tributary through a riprap spillway.

Water Quality Data Summary

Treatment Technologies
Treatment Technology Quantity
Aerobic Wetland 1
Forebay 1
Settling Pond 1
Vertical Flow Pond (VFP) 1
Location Links
Map
GPS Directions
Project Contacts
Contact Person:
Contact Organization:
Project Designer: Jen Demchak, Kevin Clark, Pat Wozinski
Project Designer Organization:
Project Responsible Organization:
Funding
Source Amount Date
EPA Section 319 $413,439.00
Organizations
no data available
External System IDs
no data available
Project Performance
